·CTN型单筒湿式逆流永磁转筒磁选机 Wet permanent

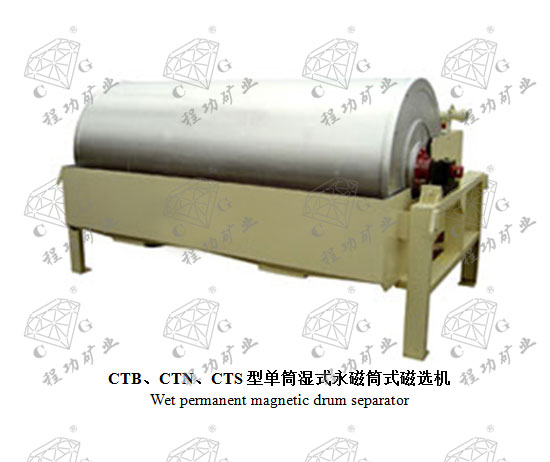

CTB、CTN、CTS型单筒湿式永磁筒式磁选机
Wet permanent magnetic drum separator

国家行业标准JB/T7895

该机主要用于弱磁场湿式选别或除去细颗粒的强磁性矿物，广泛用于选矿，洗煤和化工等行业，如：回收重介质选矿中的磁性重介质如重剂；铁选矿中低浓渡矿浆的浓缩和磁铁矿物的富集；处理强磁选机的给矿，清除其中的磁性或较弱磁性矿物及其连生体，防止磁介质堵塞。

This type of equipment is mainly used to select wet weak magnetic field and remove the strongly magnetic minerals of fine grains. They are widely used in mineral processing industry, coal washing industry, chemical industry, etc, e.g. recycle heavy formulas such as magnetic heavy media during heavy media separation, concentrate low-concentration slurry in iron ore and gather magnetic steel minerals, treat ore feeding from high-intensity magnetic separators, remove magnetic or weakly magnetic ores and coenobium, as well as prevent blockage of magnetic media.

在湿式磁选作业中，若要求获得纯净的磁性矿物，通常选用顺流型磁选机。此时，磁性矿物的回收率有可能会降低；若要求****限度地回收磁性矿物，则选用逆流型磁选机。此时，磁性矿物的品位有可能会降低。当要兼顾磁性矿物的品位和回收率时，以选用半逆流磁选机较为适宜。

During wet magnetic separation, to get pure magnetic minerals, downstream magnetic separators are usually selected. In such case, the recovery ratio of magnetic minerals might be reduced. If the magnetic minerals are required to be recycled to the largest extent, counter-current magnetic separators shall be selected. In this case, the grade of magnetic minerals might be reduced. If both the grade and recovery rate of magnetic minerals shall be taken into account, semi-countercurrent magnetic separators might be more appropriate.

型号规格 Model	筒径 Dia.	筒长 Drum length	转速 Speed	磁感强度 Magnetic inductino density	分选粒度 Partide sorting	处理能力 Capacity	功率 Power	重量 weight
型号规格 Model	mm	mm	r/min	mT	mm	m³/h	kw	t
CTB型单筒湿式半逆流永磁转筒磁选机 Wet permanent magnetic drum separator for semi-backflow tan
CTB-718	750	1800	35	300	0-1	40-130	3	2.41
CTB-918	900	1800	28	300	0-1	80-260	4	3.55
CTB-924	900	2400	28	300	0-1	140-320	4	4.18
CTB-1015	1050	1500	21	300	0-1	70-250	5.5	3.47
CTB-1018	1050	1800	21	300	0-1	100-280	5.5	3.81
CTB-1021	1050	2100	21	300	0-1	130-310	5.5	4.15
CTB-1024	1050	2400	21	300	0-1	160-340	5.5	4.51
CTB-1030	1050	3000	21	300	0-1	220-400	7.5	5.19
CTB-1218	1200	1800	19	300	0-1	140-330	7.5	4.38
CTB-1221	1200	2100	19	300	0-0.6	170-360	7.5	4.74
CTB-1224	1200	2400	19	300	0-0.6	200-390	7.5	5.15
CTB-1230	1200	3000	19	300	0-0.6	260-450	7.5	5.96
CTB-1540	1500	4000	14	300	0-0.6	360-550	11	9.87
CTN型单筒湿式逆流永磁转筒磁选机 Wet permanent magnetic drum separator backflow
CTN-718	750	1800	35	300	0-0.6	40-130	3	2.41
CTN-918	900	1800	28	300	0-0.6	80-260	4	3.55
CTN-924	900	2400	28	300	0-0.6	140-320	4	4.18
CTN-1015	1050	1500	21	300	0-0.6	70-250	5.5	3.47
CTN-1018	1050	1800	21	300	0-0.6	100-280	5.5	3.81
CTN-1021	1050	2100	21	300	0-0.6	130-310	5.5	4.15
CTN-1024	1050	2400	21	300	0-0.6	160-340	5.5	4.51
CTN-1027	1050	2700	21	300	0-0.6	190-270	7.5	4.85
CTN-1030	1050	3000	21	300	0-0.6	220-400	7.5	5.19
CTN-1033	1050	3300	21	300	0-0.6	250-430	7.5	5.93
CTN-1218	1200	1800	19	300	0-0.6	140-330	7.5	4.38
CTN-1221	1200	2100	19	300	0-0.6	170-360	7.5	4.74
CTN-1224	1200	2400	19	300	0-0.6	200-390	7.5	5.15
CTN-1227	1200	2700	19	300	0-0.6	230-420	7.5	5.54
CTN-1230	1200	3000	19	300	0-0.6	260-450	7.5	5.96
CTN-1540	1500	4000	14	300	0-0.6	360-550	11	9.87
CTS型单筒湿式顺流永磁转筒磁选机 Magnetic wet drum separator for concurrent flow
CTS-718	750	1800	35	300	0-6	40-130	3	2.41
CTS-918	900	1800	28	300	0-6	80-260	4	3.55
CTS-924	900	2400	28	300	0-6	140-320	4	4.18
CTS-1015	1050	1500	21	300	0-6	70-250	5.5	3.47
CTS-1018	1050	1800	21	300	0-6	100-280	5.5	3.81
CTS-1021	1050	2100	21	300	0-6	130-310	5.5	4.15
CTS-1024	1050	2400	21	300	0-6	160-340	5.5	4.51
CTS-1027	1050	2700	21	300	0-6	190-270	7.5	4.85
CTS-1030	1050	3000	21	300	0-6	220-400	7.5	5.19
CTS-1033	1050	3300	21	300	0-6	250-430	7.5	5.93
CTS-1218	1200	1800	19	300	0-6	140-330	7.5	4.38
CTS-1221	1200	2100	19	300	0-0.6	170-360	7.5	4.74
CTS-1224	1200	2400	19	300	0-0.6	200-390	7.5	5.15
CTS-1227	1200	2700	19	300	0-0.6	230-420	7.5	5.54
CTS-1230	1200	3000	19	300	0-0.6	260-450	7.5	5.96
CTS-1540	1500	4000	14	300	0-0.6	360-550	11	9.87
