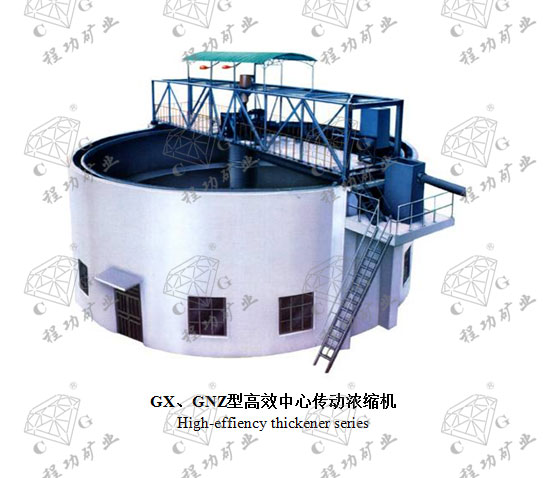

GX型高效中心传动浓缩机 High-effiency thickener series
| 型号 规格 Model | 浓密池尺寸 Dia. of the tank | 耙子转速 Speed | 提耙高度 Lifting height | 处理能力 Capacity | 功率Power | 质量 Weight |
| m | r/min | mm | t/h | kw | t | |
| GX2.5 | Φ2.5×1.73 | 1.68 | 200 | ≤1 | 0.75 | 4 |
| GX3.6 | Φ3.6×1.98 | 1.10 | 200 | ≤1.2 | 0.75 | 5 |
| GX5.18 | Φ5.18×2.38 | 0.80 | 300 | ≤3.75 | 1.5 | 10 |
| GX6 | Φ6×2.96 | 0.30 | 300 | ≤4 | 2.2 | 10.5 |
| GX7 | Φ7×3 | 0.30 | 300 | ≤7.3 | 2.2 | 12.2 |
| GX8 | Φ8×3.32 | 0.25 | 300 | ≤8 | 2.2 | 13.8 |
| GX9 | Φ9×3 | 0.47 | 400 | ≤8.75 | 3 | 14.6 |
| GX12 | Φ12×3.6 | 0.30 | 400 | ≤15 | 4 | 16 |
| GX15 | Φ15×4 | 0.20 | 400 | ≤24 | 4/2.2 | 19 |
| GX18 | Φ18×4.4 | 0.13 | 500 | ≤40 | 5.5/2.2 | 21 |
| GX20 | Φ20 | 0.145 | 400 | ≤45 | 5.5/2.2 | 22 |
| GX21 | Φ21×4.4 | 0.10 | 500 | ≤60 | 5.5/2.2 | 24 |
| GX24 | Φ24×4.4 | 0.09 | 500 | ≤80 | 2×2.2/4 | 26 |
| GX30 | Φ30 | 0.069 | 600 | ≤96 | 2×2.2/4 | 29 |
| GNZ2 | Φ2×1.8 | 1.17 | 160 | ＜0.9 | 1.1 | 2.23 |
| GNZ3 | Φ3.6×1.7 | 1.10 | 200 | ＜1 | 1.5/0.75 | 3.17 |
| GNZ5 | Φ5.18×2.13 | 0.80 | 300 | ＜3.75 | 4/0.75 | 3.68 |
| GNZ9 | Φ9×2.8 | 0.427 | 300 | ＜8.75 | 3/2.2 | 14.6 |
| GNZ12 | Φ12×3.6 | 0.35 | 500 | ＜15 | 3/2.2 | 16 |
| GNZ15 | Φ15×3.8 | 0.35 | 500 | ＜24 | 4/2.2 | 19 |
| GNZ18 | Φ18 | 0.193 | 500 | ≤40 | 5.5/2.2 | 21 |
| GNZ20 | Φ20 | 0.145 | 600 | ≤45 | 5.5/2.2 | 22 |
| GNZ24 | Φ24 | 0.085 | 600 | ≤80 | 2×2.2/4 | 26 |
| GNZ30 | Φ30 | 0.069 | 600 | ≤96 | 2×2.2/4 | 29 |
我们要求服务人员时刻关注客户，及时解决设备问题，确保顾客的利益比一切都重要。
