·MQZ型节能轴承式边缘传动格子型球磨机 Wet gra

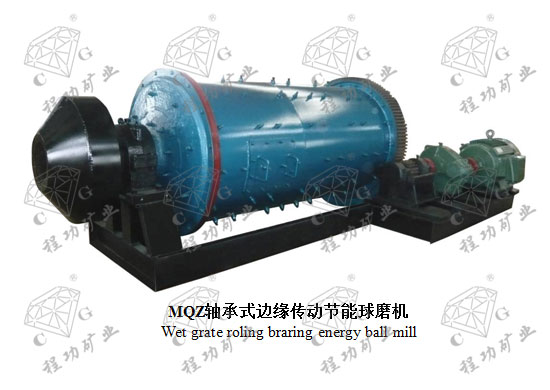

MQZ型节能轴承式边缘传动格子型球磨机 Wet grate roling bearing energy ball mill

国家行业标准JB/T1406

该系列球磨机广泛用于选矿、化工、煤、水泥、耐火材料等部门作研磨物料。

This series of ball mill is widely suitabie for ore dressing , chemical , coal,cement and tetractory sectors to operate fine grinding.

轴承式边缘传动格子型球磨机属技改型,与传统球磨机比较；降低工作电流15%。降低起动电流50%，根除巴氏合金烧损，停机、停产现象，改善球磨机同心度不够、运行不稳、电流忽高忽低、磨损中空轴严重现象。采用滚动轴承后，中空轴可继续使用，节省润滑稀油90%，提高装载量20%，提高产量15%，提速10%，每台时省电20-30%。

Wet grate bearing energy ball mills are ones of technical transformation type. Compared with traditional ball mill, they reduce 50% of working current and 50% of starting current. They can avoid babbit metal burning, machine shutdown and production stoppage, and improve the inadequacy of ball mills’ concentricity, unstable operation, unstable current, and serious abrasion of hollow shafts. After rolling bearings are adopted, the hollow shaft can continue to be used. They can save 90% of lubricating thin oil, raise 20% of loading capacity, increase 15% of output, and accelerate 10% of speed. Every machine saves 20% to 30% of electricity.

型号规格 Model	筒体尺寸 Drum size	转速 Speed	装球量 Ball Weight	给矿粒度 Feed size	排矿粒度 Output size	产量 Capacity	功率 Power	质量 Weight
型号规格 Model	m	r/min	t	mm	mm	t/h	kw	t
MQZ0918	0.9×1.8	38.8	1.92	0-20	0.074-0.6	0.4-2.14	22	5.34
MQZ1224	1.2×2.4	31	4.8	0-20	0.074-0.6	0.4-6.8	55	13.43
MQZ1245	1.2×4.5	31	5.2	0-20	0.074-0.6	1.6-12	75	17.4
MQZ1530	1.5×3	27.5	8.1	0-25	0.074-0.4	2.9-16.5	95	18.6
MQZ1557	1.5×5.7	29.2	15	0-25	0.074-0.4	4-25	130	24.54
MQZ1645	1.6×4.5	27.5	14	0-25	0.074-0.4	4-24	130	26
MQZ1836	1.8×3.6	23.9	11	0-25	0.074-0.4	8-40	155	33
MQZ1864	1.8×6.4	23.9	18.5	0-25	0.074-0.4	8-60	210	35.6
MQZ2130	2.1×3	23.8	19.8	0-25	0.074-0.4	6.5-36	210	45
MQZ2136	2.1×3.6	23.8	27	0-25	0.074-0.4	8-61	210	46.8
MQZ2265	2.2×6.5	21.6	28	0-25	0.074-0.4	8-35	240	62
MQZ2430	2.4×3	22	22.5	0-25	0.074-0.4	7-92	240	67
MQZ2436	2.4×3.6	22	28	0-25	0.074-0.4	7-95	240	73
MQZ2465	2.4×6.5	22	36	0-25	0.074-0.4	7-110	310	76
MQZ2736	2.7×3.6	21.9	39	0-25	0.074-0.4	13-145	400	77
MQZ2740	2.7×4.0	21.9	43	0-25	0.074-0.4	13-150	400	91
MQZ2836	2.8×3.6	20	42	0-25	0.074-0.4	15-140	400	94.2
MQZ3060	3×6	19	70	0-25	0.074-0.4	100-145	800	155
MQZ3245	3.2×4.5	18.6	65	0-25	0.074-0.4	100-145	800	126
MQZ3260	3.2×6	18.6	86	0-25	0.074-0.4	120-150	1250	176
MQZ3645	3.6×4.5	17.8	90	0-25	0.074-0.4	120-220	1250	160
MQZ3660	3.6×6	17.8	120	0-25	0.074-0.4	50-230	1600	190
MQZ4060	4×6	16	160	0-25	0.074-0.4	230	1600	280
MQZ5585	5.5×8.5	15	190	0-25	0.074-0.4	585	4500	525

注：1、以上机器总重量不含电机 2、表中的产量为估算产量，其给矿粒度为25㎜-0.8㎜的中等硬度的矿石。

MQYZ型节能溢流型轴承传动球磨机Overflow ball mill
型号规格 Model	筒体直径 Dia.	筒体长度 Length	装球量 Ball Weight	转速 Speed	功率 Power	排矿粒度 Output size	产量 Capacity	重量 Weight
型号规格 Model	mm	mm	t	r/min	kw	mm	t/h	t
MQYZ1530	1500	3000	8.6	22.5-29.8	≤65	0.3-0.074	6-2.8	16.5
MQYZ2130	2100	3000	17.6	19-25.2	≤155	0.3-0.074	12.6-5.8	43.5
MQYZ2136	2100	3600	21	19-25.2	≤155	0.3-0.074	12.8-6	47
MQYZ2424	2400	2400	18.8	17.8-23.5	≤210	0.3-0.074	13.2-6.2	44
MQYZ2430	2400	3000	23	17.8-23.5	≤210	0.3-0.074	16.6-7.8	46.5
MQYZ2736	2700	3600	35	16.8-22.2	≤310	0.3-0.074	25-11.7	70
MQYZ2740	2700	4000	38	16.8-22.2	≤310	0.3-0.074	27.7-13	79
MQYZ3245	3200	4500	61	15.5-20.4	≤630	0.3-0.074	44-21.6	113
MQYZ3254	3200	5400	73	15.5-20.4	≤800	0.3-0.074	52.8-25.9	121
MQYZ3260	3200	6000	86	15.5-20.4	≤800	0.3-0.074	55.6-24.3	129
MQYZ3645	3600	4500	76	14.5-19.2	≤800	0.3-0.074	55.6-24.3	135
MQYZ3650	3600	5000	86	14.5-19.2	≤1000	0.3-0.074	67-28.1	145
MQYZ3660	3600	6000	102	14.5-19.2	≤1250	0.3-0.074	74.1-32.4	154
