试验室XJT、XDT型调浆桶、搅拌槽技术参数 Tech

XJT（XDT）搅拌槽适用于各行业实验室湿法搅拌浆体物料，使矿粒悬浮并与药剂充分接触，混匀，为选别作业创造条件。Agitating tank is suitable for labs in industries to wet agitate slurry materials, allowing ore particles to suspend and to fully contact with r

XJT（XDT）搅拌槽适用于各行业实验室湿法搅拌浆体物料，使矿粒悬浮并与药剂充分接触，混匀，为选别作业创造条件。

Agitating tank is suitable for labs in industries to wet agitate slurry materials, allowing ore particles to suspend and to fully contact with reagent before being mixed evenly and creating conditions for separating operation. Leaching tank is used for wet leaching agitation with central aeration, stepless adjustment of inverter and other features.

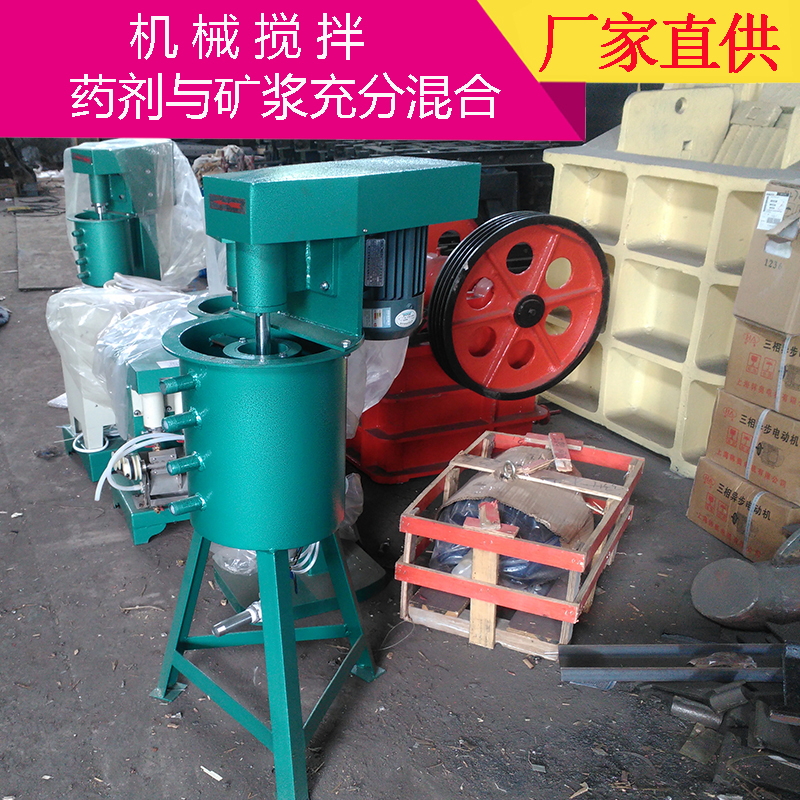

XJT（XDT）型试验室搅拌槽适用于各种矿浆浮选前的搅拌，使药剂与矿浆充分混合，也可用于化工，环保等行业的机械搅拌。

XJT (XDT) laboratory agitating and leaching tank applies to the agitation of various kinds of slurry before flotation, to allow thorough mixing of reagent and slurry. It can also be used for mechanical agitation in industries such as chemicals and environmental protection.

搅拌槽的适用范围，浓度不大于45%（按重量计算），固体成份的粒度小于1mm。

Applicable scope of agitating and leaching bank: concentration – not larger than 45% (by weight); granular size of solid content – less than 1mm

型号规格 Model	槽体容积 Volume of tank	桶体尺寸 Size of tank	叶轮直径 Impeller Diameter	叶轮转速 Impeller speed	功率 Power	外形尺寸 Overall dimensions	质量 Weight
型号规格 Model	L	mm	mm	r/min	W	mm	kg
XJT（XDT）1.5升	1.5	Φ130×157	Φ31	950	180	304×505 ×633	30
XJT（XDT）3升	3	Φ164×193	Φ39	1400	180	304×505 ×633	35
XJT（XDT）5升	5	Φ190×190	Φ48	1750	180	304×505 ×633	40
XJT（XDT）10升	10	Φ240×300	Φ64 Φ116	1600	550	350×550 ×700	43
XJT（XDT）15升	15	Φ246×348	Φ64 Φ116	1200-1500	550	480×329 ×910	45
XJT（XDT）30升	30	Φ296×448	Φ64 Φ128	1200-1500	750	560×388 ×960	63
XJT（XDT）50升	50	Φ368×510	Φ120	1200-1500	750	400×400 ×1500	75
XJT（XDT）100升	100	Φ488×600	Φ150	1200-1500	1100	540×540 ×1600	90
XJT（XDT）130升	130	Φ500×750	Φ150	1000	1500	720×720 ×1670	150
XJT（XDT）160升	160	Φ500×1000	Φ150	600	1500	930×930 ×2016	186
XJT（XDT）300升	300	Φ750×750	Φ200	600	1500	1180×1180 ×1766	297

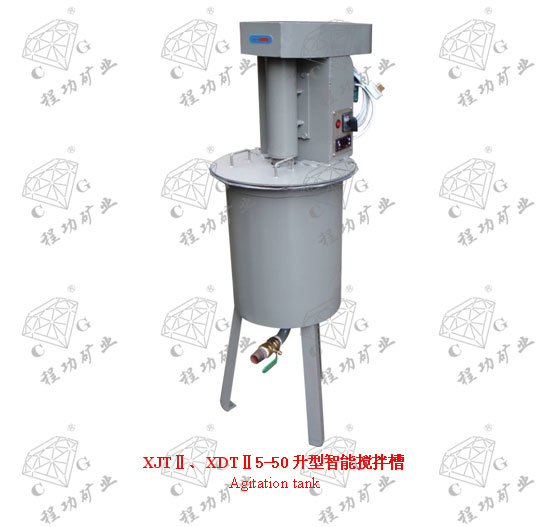

XJT（XDT）Ⅱ智能调浆桶、搅拌槽，浸出槽是更新换产品，具有变频调速及温控装置等特点（温度＜100℃）。 XJT（XDT）ⅡSlurry Conditioning Drum, Agitating and Leaching Tanks are updating products with speed governing by frequency conversion, temperature (temperature ＜100℃)control device and other features. XJT（XDT）Ⅱ型试验室搅拌槽是XJT型实验室搅拌槽更新换代产品，具有自动温控（< 100℃）功能，温度实时数字显式，误差< 0.5℃。XJTⅡ5L型以下具有变频调速功能，槽体为悬挂式，方便拆下清洗。（根据用户需要，可增加耐酸碱防腐蚀、中心轴充气等功能，采购本产品时一定要加以注明。） XJT (XDT) II laboratory agitating and leaching tank is the regeneration product of XJT laboratory agitating and leaching tank which is equipped with the function of automatic temperature control (<100℃). It allows real-time digital display of temperature with the error <0.5℃. The XJTⅡ5L one has the function of speed regulation by frequency variation. The tank is of suspension type, easy for dismantling and washing. Functions such as acid and basic resistance, and anti-corrosion as well as air inflation of central shaft can be added according to the needs of users. If so, it must be indicated during the purchase of this product. XJT（XDT）Ⅱ型试验室搅拌槽适用于各种矿浆浮选前的搅拌，使药剂与矿浆充分混合，也可用于化工，环保等行业的机械搅拌。 XJT (XDT) II laboratory agitating and leaching tank applies to the agitation of various kinds of slurry before flotation, to allow thorough mixing of reagent and slurry. It can also be used for mechanical agitation in industries such as chemicals and environmental protection. 搅拌槽的适用范围，浓度不大于45%（按重量计算），固体成份的粒度小于1mm。Applicable scope of agitating and leaching bank: concentration – not larger than 45% (by weight); granular size of solid content – less than 1mm.
型号规格 Model	槽体容积 Volume of tank	桶体尺寸 Size of tank	叶轮直径 Impeller Diameter	叶轮转速 Impeller speed	功率 Power	外形尺寸 Overall dimensions	质量 Weight
型号规格 Model	L	mm	mm	r/min	W	mm	kg
XJT（XDT）1.5Ⅱ升	1.5	Φ130×157	Φ31	0-2600	180	450×340 ×575	30
XJT（XDT） 3Ⅱ升	3	Φ164×193	Φ39	0-2600	180	450×340 ×575	35
XJT（XDT） 5Ⅱ升	5	Φ190×190	Φ48	0-2600	180	450×340 ×575	40
XJT（XDT）15Ⅱ升	15	Φ246×348	Φ64 Φ116	1200-1500	550	480×329 ×910	45
XJT（XDT）30Ⅱ升	30	Φ296×448	Φ64 Φ128	1200-1500	750	560×388 ×960	63
XJT（XDT）50Ⅱ升	50	Ф368×510	Φ120	1200-1500	750	400×400 ×1500	75
XJT（XDT）100Ⅱ升	100	Ф488×600	Φ150	1200-1500	1100	540×540 ×1600	90
XJT（XDT）130Ⅱ升	130	Φ500×750	Φ150	1000	1500	720×720 ×1670	150
XJT（XDT）160Ⅱ升	160	Φ500×1000	Φ150	600	1500	930×930 ×2016	186
XJT（XDT）300Ⅱ升	300	Φ750×750	Φ200	600	1500	1180×1180 ×1766	297
