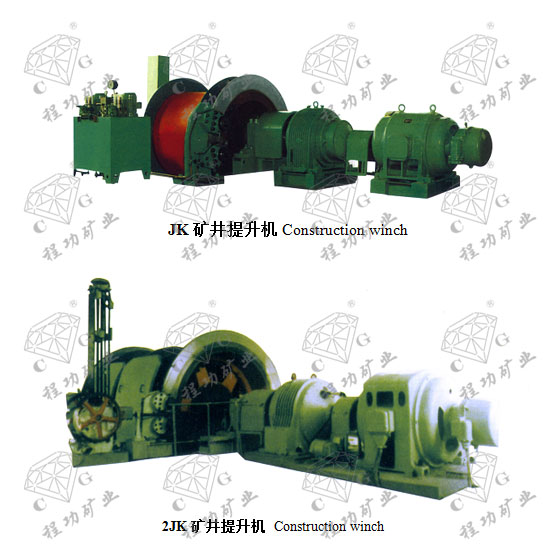

JK型矿井提升机 Construction winch
JK系列矿井提升机用于煤矿、金属矿及非金属矿在斜井和竖作提升或下降人员及物料之用。
Series JK Mine Hjist are mainly used ir coal metal and non-metal mines for the purpose of Lifting and lowening works in the inclined shafts or small shafts.
| 型号规格 Model | 卷筒 Drum | 钢丝绳 Rope | 功率 Power | 重量 weight | ||||
| 直径 Diameter | 宽度 Width | 拉力 Pull | 直径 Diameter | 容绳量 Diameter | 速度 Veiocity | |||
| m | m | kn | m | m | m/sec | kw | kg | |
| JK-2/20A | 2 | 1.5 | 60 | 24.5 | 950 | 5.0/3.7 | 348/256 | 20415 |
| JK-2/30A | 2 | 1.5 | 60 | 24.5 | 950 | 3.3/2.5 | 207/174 | 20415 |
| JK-2×1.8/20A | 2 | 1.8 | 60 | 24.5 | 1125 | 5.0/3.7 | 348/256 | 20915 |
| JK-2×1.8/30A | 2 | 1.8 | 60 | 24.5 | 1125 | 3.3/2.5 | 207/174 | 20915 |
| 2JK-2/20A | 2 | 1 | 60 | 24.5 | 600 | 5.12/3.81 | 215/155 | 24110 |
| 2JK-2/30A | 2 | 1 | 60 | 24.5 | 600 | 3.41/2.54 | 155/110 | 24110 |
| 2JK-2/11.5A | 2 | 1 | 60 | 24.5 | 600 | 6.64/5.32 | 300/240 | 24110 |
| 2JK-2×1.25/20A | 2 | 1.25 | 60 | 24.5 | 810 | 5.12/3.81 | 215/155 | 25255 |
| 2JK-2×1.25/30A | 2 | 1.25 | 60 | 24.5 | 810 | 3.41/2.54 | 155/110 | 25255 |
| 2JK-2×1.25 /11.5A | 2 | 1.25 | 60 | 24.5 | 810 | 670 | 315 | 25255 |
| JK-2.5/20A | 2.5 | 2 | 90 | 31 | 1290 | 4.7/3.8 | 570/394 | 30118 |
| JK-2.5/30A | 2.5 | 2 | 90 | 31 | 1290 | 3.2/2.5 | 332/260 | 30118 |
| JK-2.5×2.2/20A | 2.5 | 2.2 | 90 | 31 | 1454 | 4.7/3.8 | 570/394 | 32060 |
| JK-2.5×2.2/30A | 2.5 | 2.2 | 90 | 31 | 1454 | 3.2/2.5 | 332/260 | 32060 |
| 2JK-2.5/11.5A | 2.5 | 1.2 | 90 | 31 | 790 | 6.6/8.2 | 400/570 | 35750 |
| 2JK-2.5/20A | 2.5 | 1.2 | 90 | 31 | 790 | 3.8/4.7 | 260/300 | 35750 |
| 2JK-2.5/30A | 2.5 | 1.2 | 90 | 31 | 790 | 2.5/3.2 | 160/200 | 35750 |
| 2JK-2.5×1.5/11.5A | 2.5 | 1.5 | 90 | 31 | 1000 | 6.6/8.2 | 400/570 | 35750 |
| 2JK-2.5×1.5/20A | 2.5 | 1.5 | 90 | 31 | 1000 | 3.8/4.7 | 260/300 | 35750 |
| 2JK-2.5×1.5/30A | 2.5 | 1.5 | 90 | 31 | 1000 | 2.5/3.2 | 160/200 | 35750 |
| 2JK-2.5×1.35 1.5A | 2.5 | 1.35 | 90 | 31 | 900 | 6.6/8.2 | 400/570 | 36700 |
| 2JK-2.5×1.35/20A | 2.5 | 1.35 | 90 | 31 | 900 | 3.8/4.7 | 260/300 | 36700 |
| 2JK-2.5×1.35/30A | 2.5 | 1.35 | 90 | 31 | 900 | 2.5/3.2 | 160/200 | 36700 |
| JK-3×2.2/20A | 3 | 2.2 | 135 | 36 | 1513 | 5.73/4.56/3.81 | 794/631/528 | 53318 |
| 2JK-3/11.5A | 3 | 1.5 | 130 | 37 | 955 | 6.62/7.92/9.97 | 565/675/850 | 59500 |
| 2JK-3/20A | 3 | 1.5 | 130 | 37 | 955 | 4.56/5.73 | 388/498 | 57480 |
| 2JK-3/30A | 2 | 1.5 | 130 | 37 | 955 | 3.04/3.82 | 259/326 | 57480 |
| 2JK-3.5/20A | 3.5 | 1.7 | 170 | 40 | 746 | 4.44/5.31/6.69 | 545/651/820 | 76800 |
